NEW QUESTION # 45
What is a characteristic of a stretched bridge domain solution between Cisco ACI sites with Layer
2 flood enabled?
- A. Contracts are local to the provided site.
- B. Spine head-end replication is used to forward BUM traffic between sites.
- C. BUM traffic between sites leverages ISN multicast replication.
- D. The solution reduces control plane overhead.
Answer: B
NEW QUESTION # 46

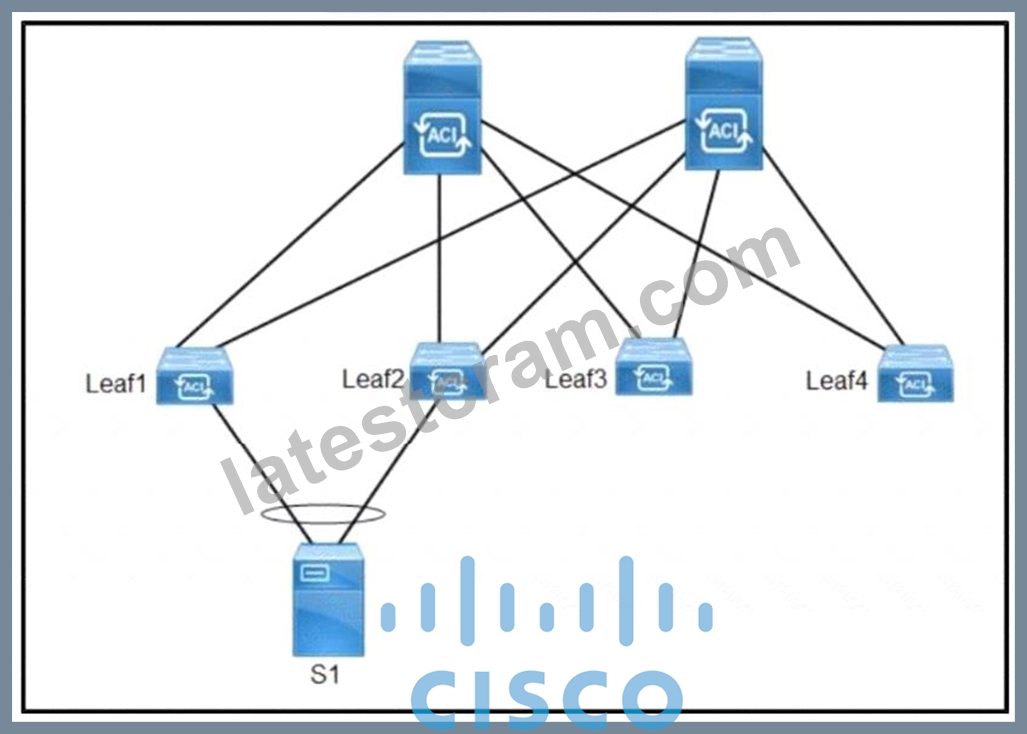

Refer to the exhibit.
A Cisco ACI fabric must be integrated with VMware. Leaf1 and Leaf2 are connected to S1 using a VPC. The object VMware Virtual Distributed switch VPC Policy group type has been created in the fabric. Which mode must be set for the port-channel policy to allow the failover and the full use of the bandwidth in both directions?
- A. MAC Pinning
- B. Explicit failover order
- C. Static channel - Mode On
- D. Link Aggregation Control Protocol
Answer: D
NEW QUESTION # 47

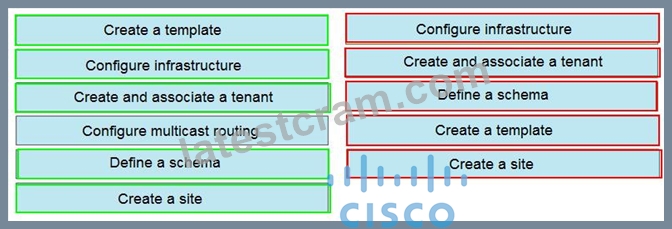

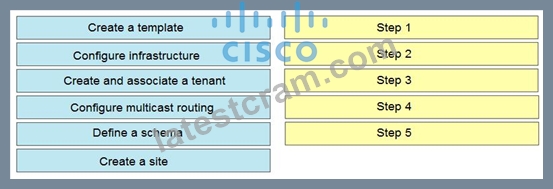

An engineer deploys a Cisco ACI Multi-Site Orchestrator for the first time. Drag and drop the actions from the left into the steps on the right to add a site and deploy new Cisco ACI objects to the fabric. Not all actions are used.
Answer:
Explanation:
NEW QUESTION # 48

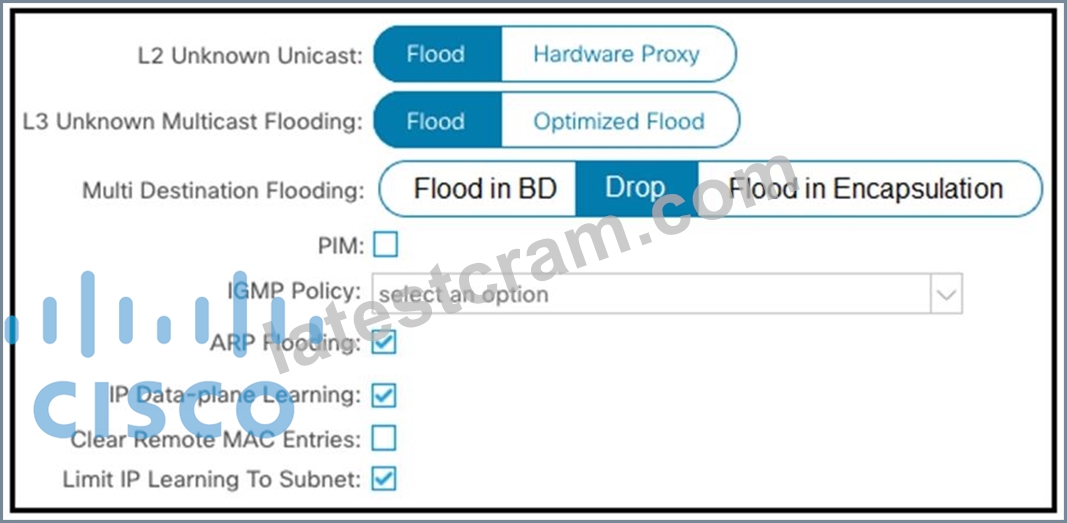

Refer to the exhibit. Which method does Cisco ACI fabric use to forward L2 Unknown Unicast packets?
- A. Packets are dropped if dMAC is absent in COOP.
- B. The source leaf sends the traffic to all ports in BD.
- C. The traffic is flooded using VRF Outer Multicast Group ID.
- D. Traffic is flooded to all Layer 2 ports of ACI fabric.
Answer: A
NEW QUESTION # 49
Which protocol must be applied between the inter-pod network and spines within each pod to allow broadcast traffic replication between Cisco ACI pods?
- A. Multicast BGP
- B. Bidirectional PIM
- C. IGMP Registration
- D. MSDP Peering
Answer: C
NEW QUESTION # 50

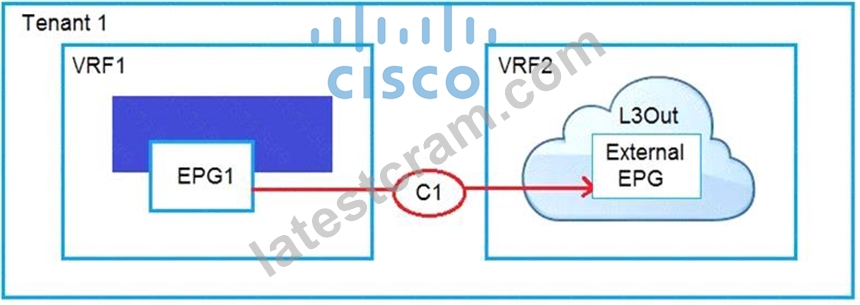

Refer to the exhibit.
An engineer must have communication between EPG1 in VRF1 and External EPG in VRF2. Which three actions should be taken for the defined subnets in the L3Out External EPG to accomplish this goal? (Choose three.)
- A. Enable Import Route Control Subnet
- B. Enable Shared Security Import Subnet
- C. Enable Shared Route Control Subnet
- D. Enable External Subnets for External EPG
- E. Enable Aggregate Shared Routes
- F. Enable Export Route Control Subnet
Answer: A,B,F
NEW QUESTION # 51
What are two P8R characteristics of the Cisco ACI Active-Active Across Pods deployment mode in Cisco ACI Multi-Pod design? (Choose two.)
- A. Deployment occurs in go-to mode only.
- B. This mode causes the traffic to flow asymmetrically.
- C. Traffic is dynamically redirected to the firewall that owns the connection.
- D. Deployment occurs in transparent mode.
- E. The connection state is unsynchronized.
Answer: A,C
NEW QUESTION # 52

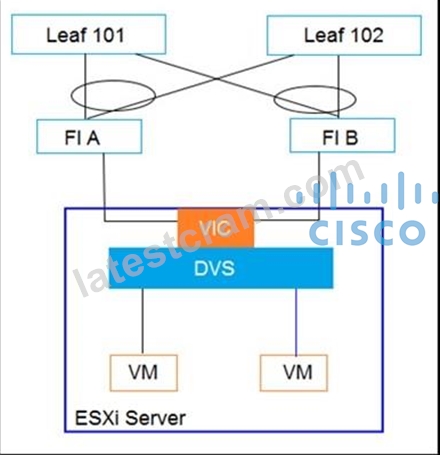

Refer to the exhibit.
Between Cisco UCS Fls and Cisco ACI leaf switches, CDP is disabled, the LLDP is enabled, and LACP is in Active mode. Which two discovery protocols and load-balancing mechanism combinations can be implemented for the DVS? (Choose two.)
- A. CDP enabled, LLDP enabled, and LACP Active
- B. CDP disabled, LLDP enabled, and LACP Passive
- C. CDP enabled, LLDP disabled, and LACP Active
- D. CDP enabled, LLDP disabled, and MAC Pinning
- E. CDP enabled, LLDP disabled, and LACP Passive
- F. CDP disabled, LLDP enabled, and MAC Pinning
Answer: E,F
NEW QUESTION # 53
What are two characteristics of Cisco ACI interaction with MSTP? (Choose two.)
- A. A static path binding is required for native VLAN to carry the MST BPDUs in existing EPGs.
- B. A Cisco ACI leaf flushes all local endpoints in the received EPG when an MSTP TCN frame is received.
- C. The PVST simulation must be configured on external network switches to support MSTP.
- D. Mis-cabling protocol is used to snoop the MSTP TCN packets.
- E. A dedicated EPG must be created for the native VLAN ID with static bindings toward the MSTP-enabled switches.
Answer: D,E
Explanation:
Section: Traditional network with ACI
NEW QUESTION # 54

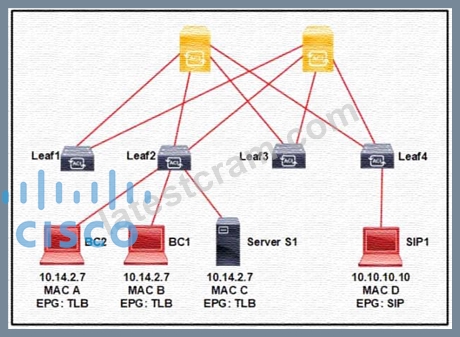

Refer to the exhibit.
Server S1 is load balancing traffic received from SIP1 to BC1 and BC2. The Cisco ACI fabric must learn the IP address of S1 and unlearn the BC1 and BC2 IP addresses. Which two actions must be taken to meet these requirements? (Choose two.)
- A. Check the Limit IP learning to subnet box.
- B. Suppress ARP response on BC1 and BC2.
- C. Create L4-L7 virtual IP of 10.14.2.7.
- D. Disable IP data plane learning on EPG TLB
- E. Enforce subnet check globally.
Answer: A,B
Explanation:
In the Cisco ACI fabric, to ensure that the IP address of Server S1 is learned and the IP addresses of BC1 and BC2 are not learned, one must limit IP learning to a specific subnet and suppress ARP responses from BC1 and BC2. By checking the "Limit IP learning to subnet" box (Option A), it ensures that only IPs within a defined subnet are learned, which would include Server S1's IP but exclude BC1 and BC2 if they are outside of this subnet.Suppressing ARP response on BC1 and BC2 (Option D) prevents these devices from responding to ARP requests, which in turn prevents their IPs from being learned by other devices in the network. References := ( Implementing Cisco Application Centric Infrastructure Official Cert Guide )
NEW QUESTION # 55

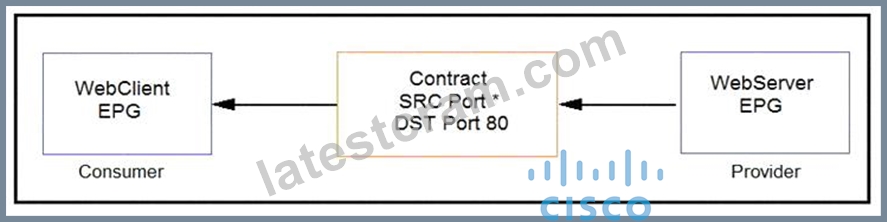

Refer to the exhibit.
Which combination of flags in the Cisco ACI contract allows a client in WebClient EPG to establish an HTTP connection toward a server in WebServer EPG?
- A. Apply Both Direction ENABLED and Reverse Port Filter DISABLED
- B. Apply Both Direction DISABLED and Reverse Port Filter DISABLED
- C. Apply Both Direction DISABLED and Reverse Port Filter ENABLED
- D. Apply Both Direction ENABLED and Reverse Port Filter ENABLED
Answer: C
NEW QUESTION # 56

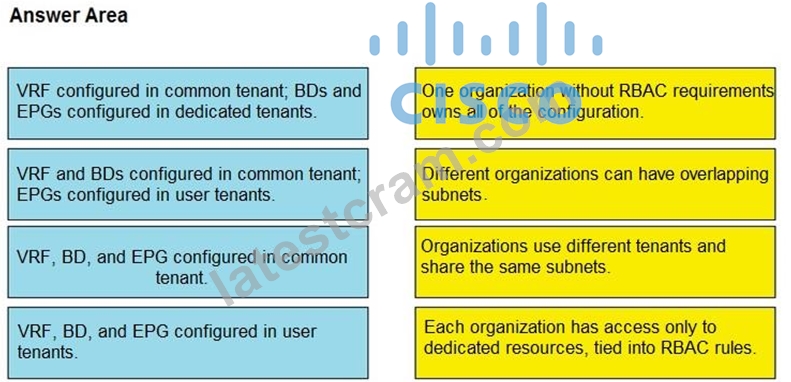

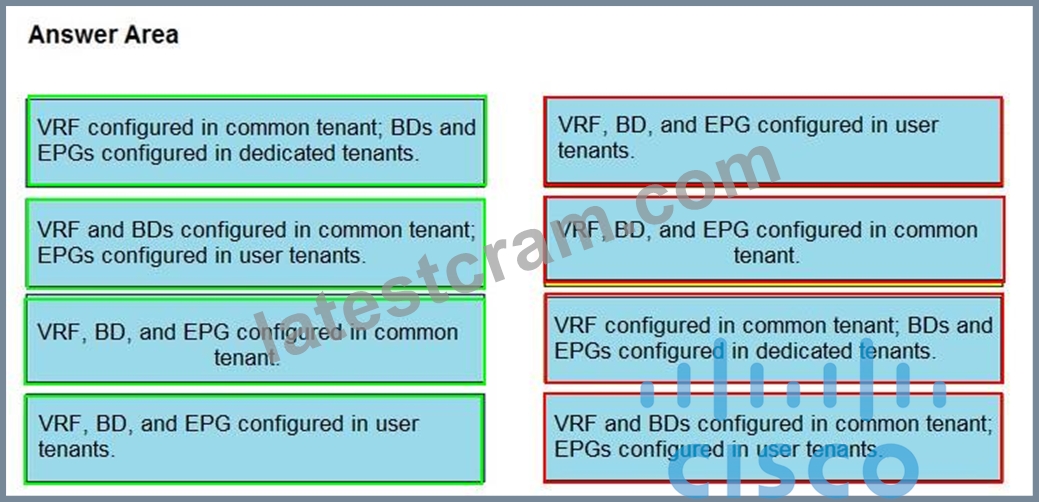

Drag and drop the tenant implementation designs from the left onto the outcomes of the design when a greenfield Cisco ACI fabric is deployed on the right.
Answer:
Explanation:
NEW QUESTION # 57

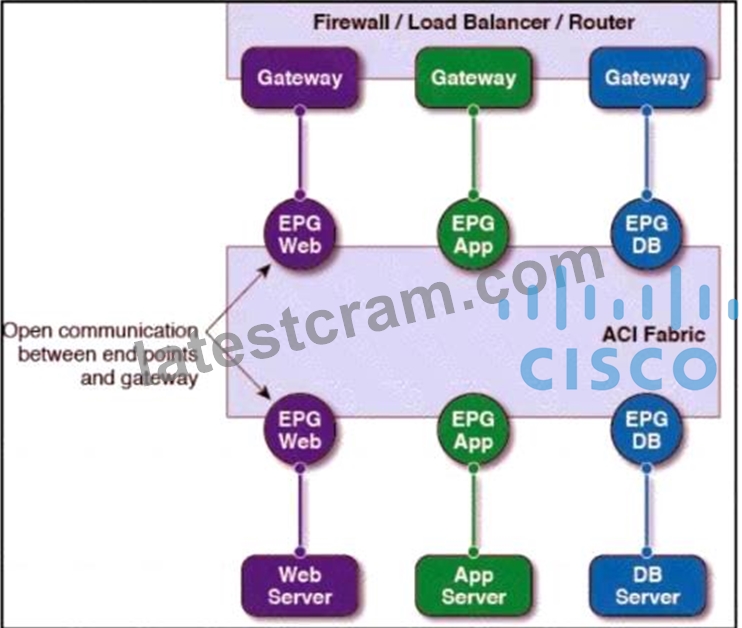

Refer to the exhibit.
Which type of design approach is shown?
- A. traditional VLAN/subnet model
- B. network-centric
- C. application-centric
- D. edge-core-edge model
Answer: C
NEW QUESTION # 58
An engineer is configuring a Cisco ACI fabric and requires a shared L3Out network connectivity to external networks. The connectivity must be shared between different tenants. Which tenant type must be created to meet this requirement?
- A. user tenant
- B. infra tenant
- C. common tenant
- D. management tenant
Answer: C
NEW QUESTION # 59
Which statement about when Cisco ACI is integrated with Microsoft Azure pack is true?
- A. The application network profile is created in the Cisco APIC and pushed to Systems Center.
- B. The application network profile is created in Windows Systems Center and pushed to the Cisco APIC.
- C. The application profile is created in Windows Azure Pack Management Portal and pushed to the Cisco APIC.
- D. The application network profile is created in the Cisco APIC and pushed to Windows Azure.
Answer: D
NEW QUESTION # 60
A host that is connected to a Cisco ACI fabric leaf switch sends an ARP request. Which transmission method does the ingress switch use to send the ARP requests?
- A. multicast
- B. broadcast
- C. unicast
- D. anycast
Answer: C
Explanation:
Reference:
https://www.cisco.com/c/en/us/td/docs/dcn/whitepapers/cisco-application-centric-infrastructure-design- guide.html
NEW QUESTION # 61

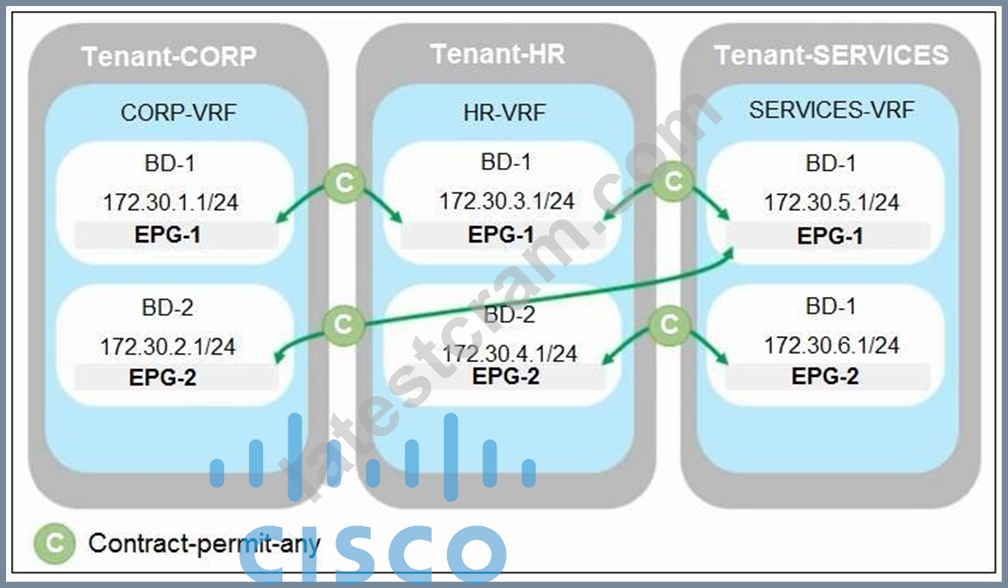

Refer to the exhibit. A company merges three of its departments: CORP, HR, and SERVICES.
Currently, the connectivity between departments is achieved by using VRF route leaking. The requirement is to redesign the Cisco ACI networking architecture to communicate between EPGs and BDs from any tenant without configuring contracts or VRF route leaking. Which configuration meets these criteria?
- A. Configure an enforced VRF in the user tenant and map all required EPGs to it.
- B. Configure an unenforced VRF in the user tenant and map all required EPGs to it.
- C. Implement an unenforced VRF in the common tenant and map all required BDs to it.
- D. Implement an enforced VRF in the common tenant and map all required BDs to it
Answer: C
NEW QUESTION # 62
An engineer is implementing the Cisco ACI fabric but is experiencing loops detected from endpoints. When the issue was investigated, it was discovered that the packets are received with the same source IP address but from different leaf switch ports. The engineer must prevent the issue from happening in the future and make sure that the port is brought back up if it was disabled due to the loop discovered. Which set of actions must be taken to meet these requirements?
- A. Enable the rogue endpoint and set the Error Disabled Recovery Policy
- B. Enable reverse path forwarding and set the Hold Interval
- C. Enable the remote endpoint limit and set the Interface override
- D. Enable the enforce endpoint check and set the Rouge EP detection interval
Answer: A
NEW QUESTION # 63
......
Passing the Cisco 300-630 exam is a valuable achievement for IT professionals who want to demonstrate their expertise in Cisco ACI solutions. It validates their knowledge and skills in designing and deploying complex data center networks that can support modern applications and services. Additionally, the certification can help professionals advance their careers and earn higher salaries.
